Colorful Bare Fiber Protection Tube

Brand Name : XXR

Model Number : BFPT

Certification : SGS

Place of Origin : China

MOQ : 1 roll

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000 Meters per Week

Delivery Time : 5-7 days

Packaging Details : 100 / 200 meters/ roll

Material : Cross-linked polyolefin

Spec. : 3*5 MM

Shape : Round

Operating temperature : -55 ℃ ~ +100 ℃

Min.Shrink temperature : 120 ℃

Atmospheric pressure : 70 ~ 106 Kpa

Color : white, black, red, green, orange, blue,etc.

Suitable for : optical fiber splice closure

Contact Now

High Quality Bare Fiber Protection Tube

Colorful Bare fiber protection tube, designed for the protection of fiber that be stripped of housing,mainly used for ODF, Optical Distribution Box, Fiber Splice Closure, Optical cross-connecting cabinet.

Outer diameter: 5MM

Range: ODF fiber or bare fiber

Feature: colorful color, not easy to break, with excellent performance.

Technical data:

Properties	Test method	Value
Tensile strength (MPa)	ASTM D 2671	≥10.4
Elongation at break (%)	ASTM D 2671	≥200
Withstand voltage (300v)	UL 224	1500V,1MIN
Dielectric strength (KV/MM)	ASTM D 149	≥15
Volume resistivity (Ω.cm)	IEC 60093	≥10¹⁴
Length change ratio (%)	ASTM D 2671	±5%

Round/Rectangular/Oval Shape

Product Tags:

Colorful Fiber Protection Tube

Bare Fiber Protection Tube

Colorful Bare Fiber Protection Tube

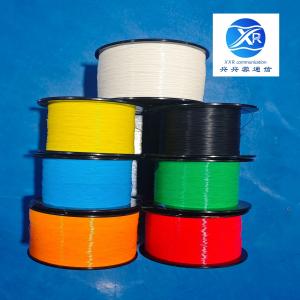

Colorful Bare Fiber Protection Tube Images
